| Item | Specification |
|---|---|
| Model | YE3 |
| Frame Size | H80–355 mm |
| Voltage | 380V, or customized |
| Protection Degree | IP55 |
| Mounting Type | Foot mounting, flange mounting, double shaft ends |
| Certification | ISO9001, CCC, CE |
| Insulation Class | Class F |
| Output Power | 0.12 kW–800 kW |

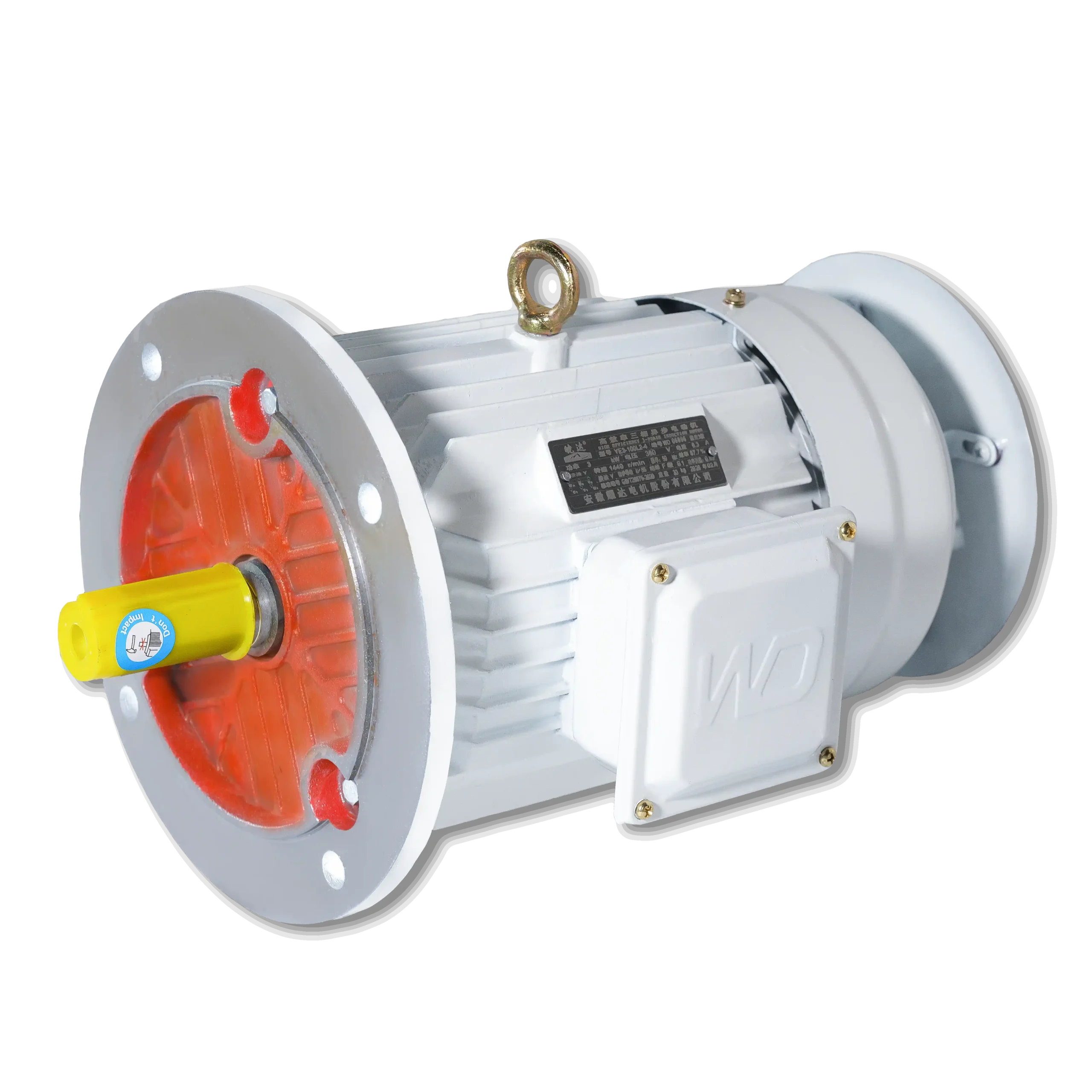

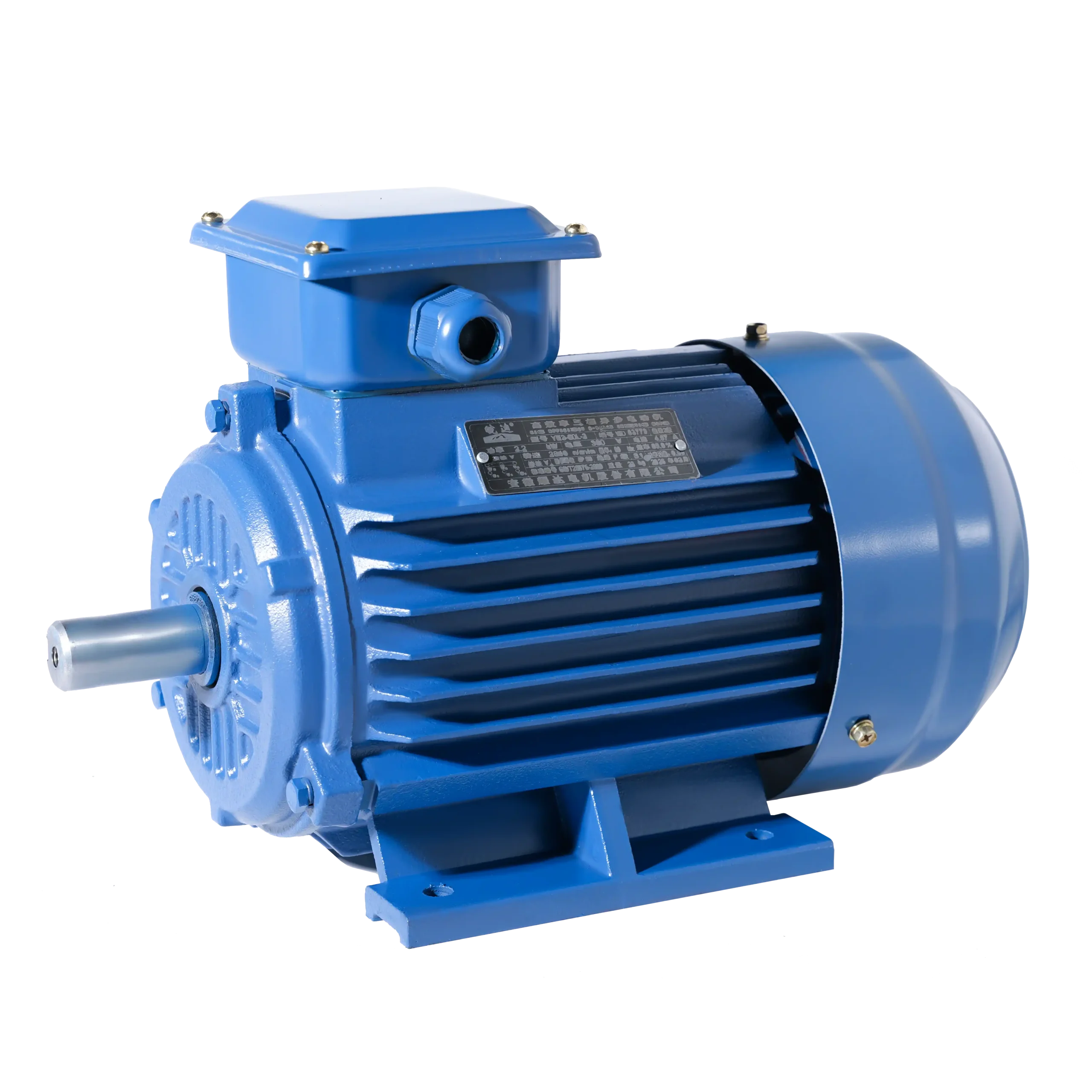

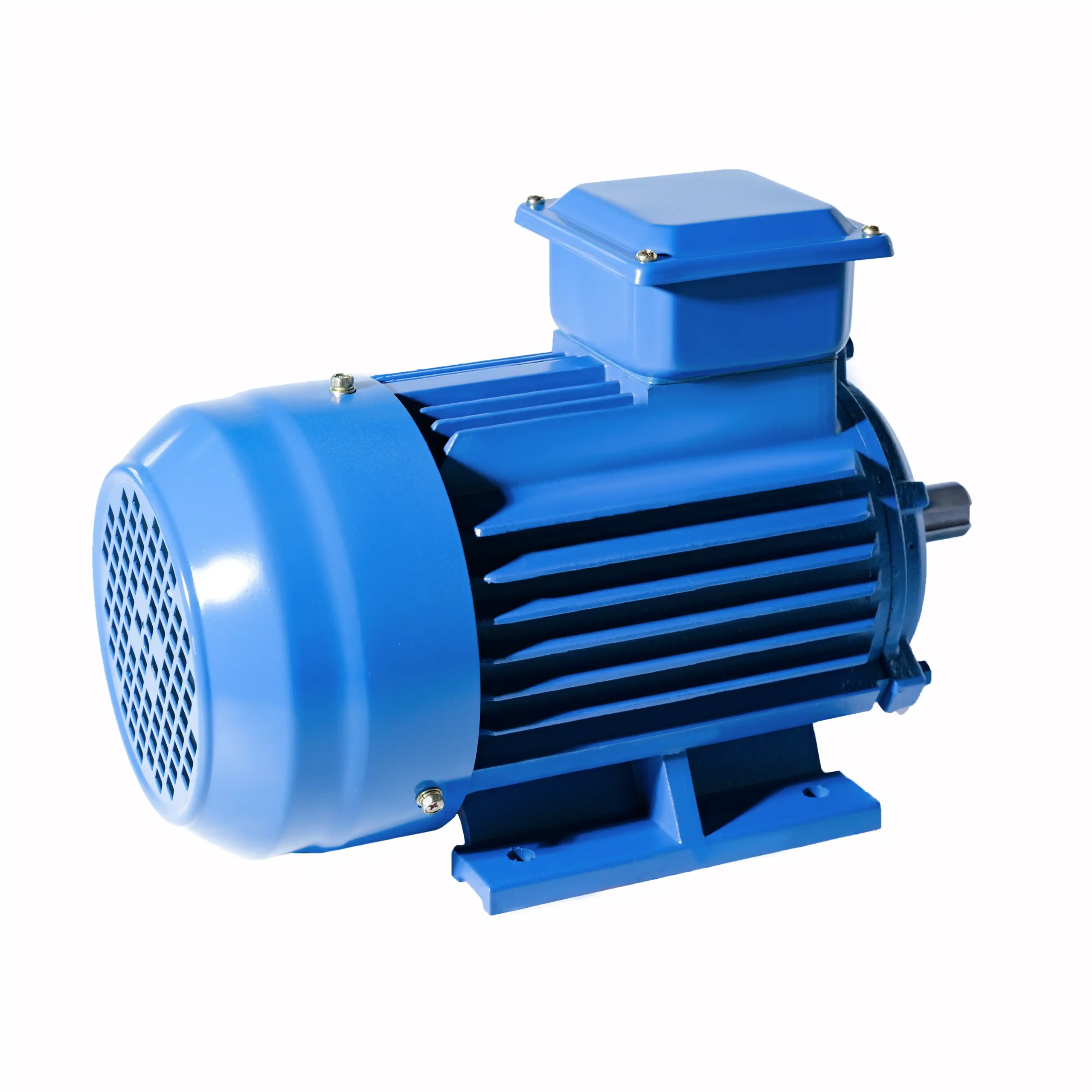

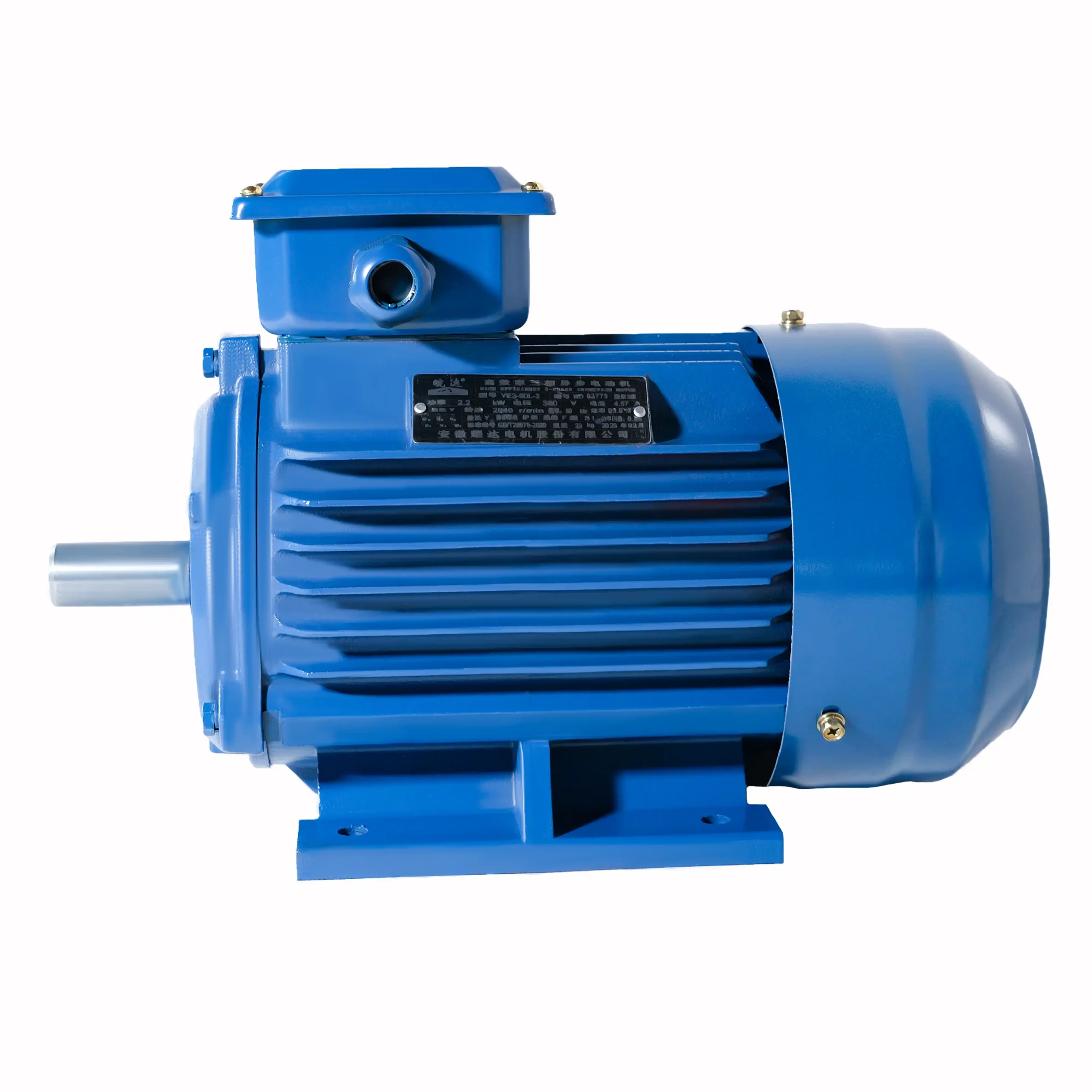

YE3 Series (H80–355) High-Efficiency Three-Phase Asynchronous Motor
-
The YE3 Series high-efficiency three-phase asynchronous motor is an energy-saving motor designed and manufactured according to the latest national energy efficiency standards. This series adopts a totally enclosed, fan-cooled structure with squirrel-cage rotor design, offering reliable operation, stable performance, and improved energy efficiency for industrial applications.
Its full-load efficiency meets the Grade 3 energy efficiency requirements specified in GB18613-2020, the national standard for energy efficiency limits and grades of small and medium-sized three-phase asynchronous motors. It is suitable for users seeking to replace older Y and Y2 series motors with more efficient and compliant motor solutions.
YE3 Series motors can be widely used as power sources for general machinery, including metal cutting machines, water pumps, fans, air compressors, conveyors, mixers, printing machinery, agricultural machinery, and food processing equipment. They are suitable for general industrial environments without flammable, explosive, or corrosive gases.
Product Specifications
Item Specification Model YE3 Frame Size H80–355 mm Voltage 380V, or customized Protection Degree IP55 Mounting Type Foot mounting, flange mounting, double shaft ends Certification ISO9001, CCC, CE Insulation Class Class F Output Power 0.12 kW–800 kW Short Description
YE3 Series (H80–355) high-efficiency three-phase asynchronous motors are designed for reliable industrial power transmission, offering stable operation, IP55 protection, Class F insulation, and flexible mounting options for pumps, fans, compressors, conveyors, and general machinery.
-
